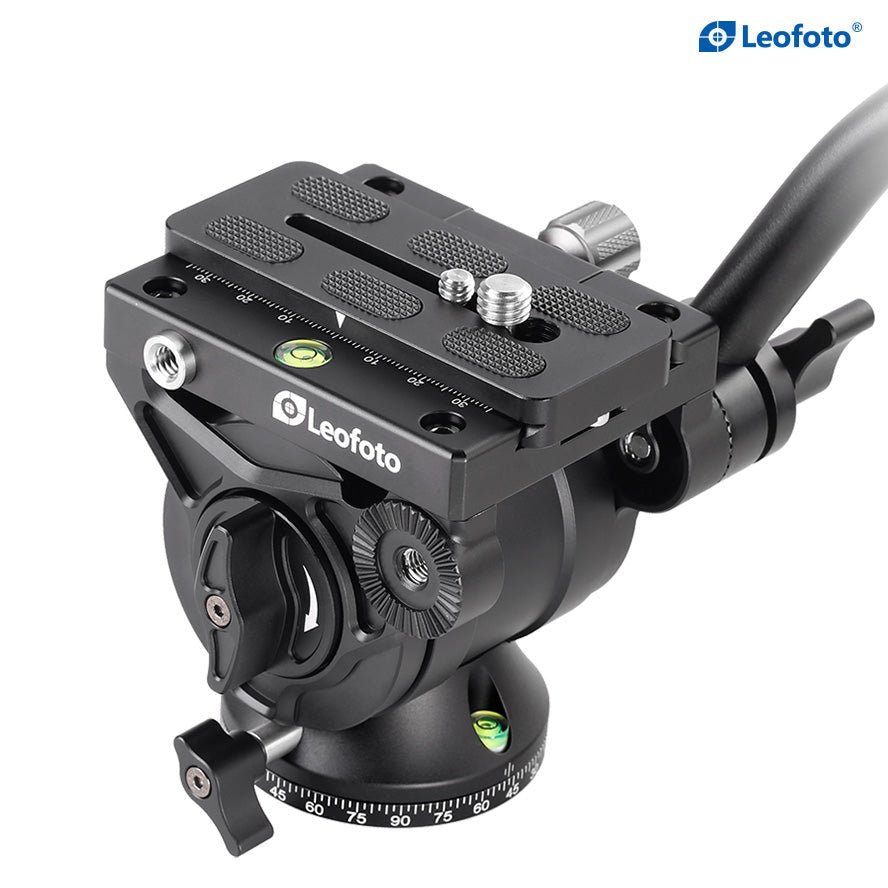

Leofoto Fluid Video Head BV-10

Lightweight and compact, this Fluid Video Head from Leofoto is suitable for DSLRs, mirrorless cameras, and compact camcorders weighing up to 11 lb. Featuring an Arca-Swiss plate and including both a 1/4"-20 and 38"-16 mounting screw, the head accepts a wide variety of cameras. The head features a 60mm flat base that can mount on compatible tripod legs, a slider carriage, or other platforms with a 3/8"-16 mounting screw.
The head pans 360°, is indexed for repeatability, and has a tilt range of 90 to 75°. Likewise, the camera platform is indexed, making it fast and easy to rebalance your setup on the head. Two bubble levels (on the pan base and one on the camera platform) allow you to confirm your head is level. Pan handle mounting rosettes allow you to mount the included pan handle to either side of the head for operator comfort, and individual pan and tilt locks provide security when you need to either only tilt or pan.
Key Features

• Compact and lightweight
• 60mm flat base with a 3/8"-16 threaded mounting interface
• Maximum payload of 11 lb
• Aluminum construction
• Arca-Swiss QR plate with anti-twist pads prevent metal-to-metal contact
• 360° pan motion and +90/-75° tilt adjustment
• Individual pan and tilt locks
• Bubble level
• Two rosette pan handle mounts
• Pan handle included

Specifications
Camera Plate
Camera Plate Features Sliding Balance Plate
Camera Plate Type Arca-type
Camera Mounting Screw 1 x 1/4"-20 Male
1 x 3/8"-16 Male
Head
Base Mount Flat Base
Pan Handle Fittings 2 x Rosette
Included Pan Handle Length 12.6" / 320 mm
Bubble Level 2
Accessory Mounting 1 x 3/8"-16 Female Thread
Base Diameter 2.4" / 60 mm
Pan & Tilt
Vertical Tilt +90° to -75°
Panning Range 360°
Independent Pan Lock Yes
Independent Tilt Lock Yes
General
Load Capacity 11 lb / 5 kg
Weight 1.5 lb / 0.7 kg
